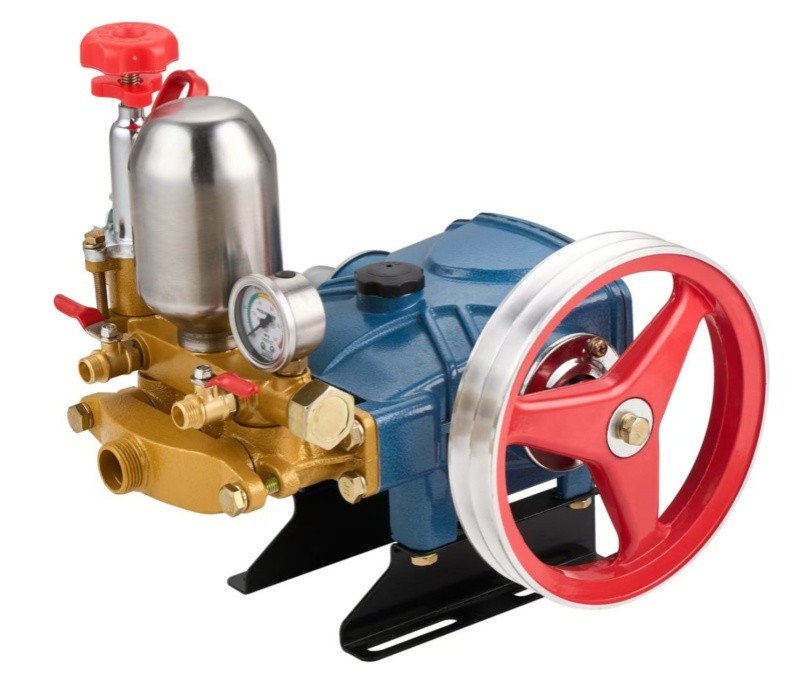

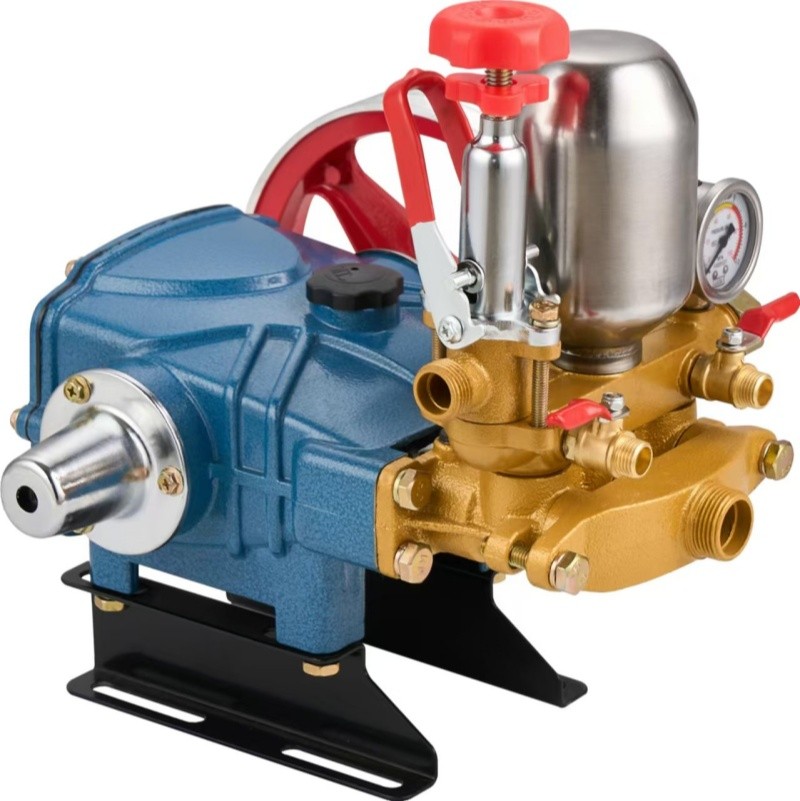

YH-26W

Characteristic

The rod is tensile and wear resistant and has good toughness; The pump shell and four large parts are all processed by cnc (precision work center); The exterior design conforms to the principles of mechanics, the structure is stable, and the unique streamlined curves are aesthetically pleasing. Main components are carefully manufactured and quality guaranteed; The heavy construction allows the piston pump to have high performance.

The five core escort for you

Performance is stable

The pressure can be adjusted

Multiple uses of a single machine

Long lasting.

Extra longevity

Detailed parameters

Model

 YH-26J

YH-26JA

YH-26JB

YH-26T

YH-26W

Plunger Dia x stroke

22x16mm

22x16mm

22x16mm

22x16mm

22x16mm

Suction Volume

14-20L/min

14-20L/min

14-20L/min

14-20L/min

14-20L/min

Working Pressure

0-40kg/cm2

0-40kg/cm2

0-40kg/cm2

0-40kg/cm2

0-40kg/cm2

Revolution

800-1000r.p.m

800-1000r.p.m

800-1000r.p.m

800-1000r.p.m

800-1000r.p.m

Required power

1.2-2.2KW

1.2-2.2KW

1.2-2.2KW

1.2-2.2KW

1.2-2.2KW

 weight

7.5kg

7.5kg

7.5kg

7.5kg

7.5kg

Packing Dimension

340x280x335mm

340x280x335mm

340x280x335mm

340x280x335mm

340x280x335mm
