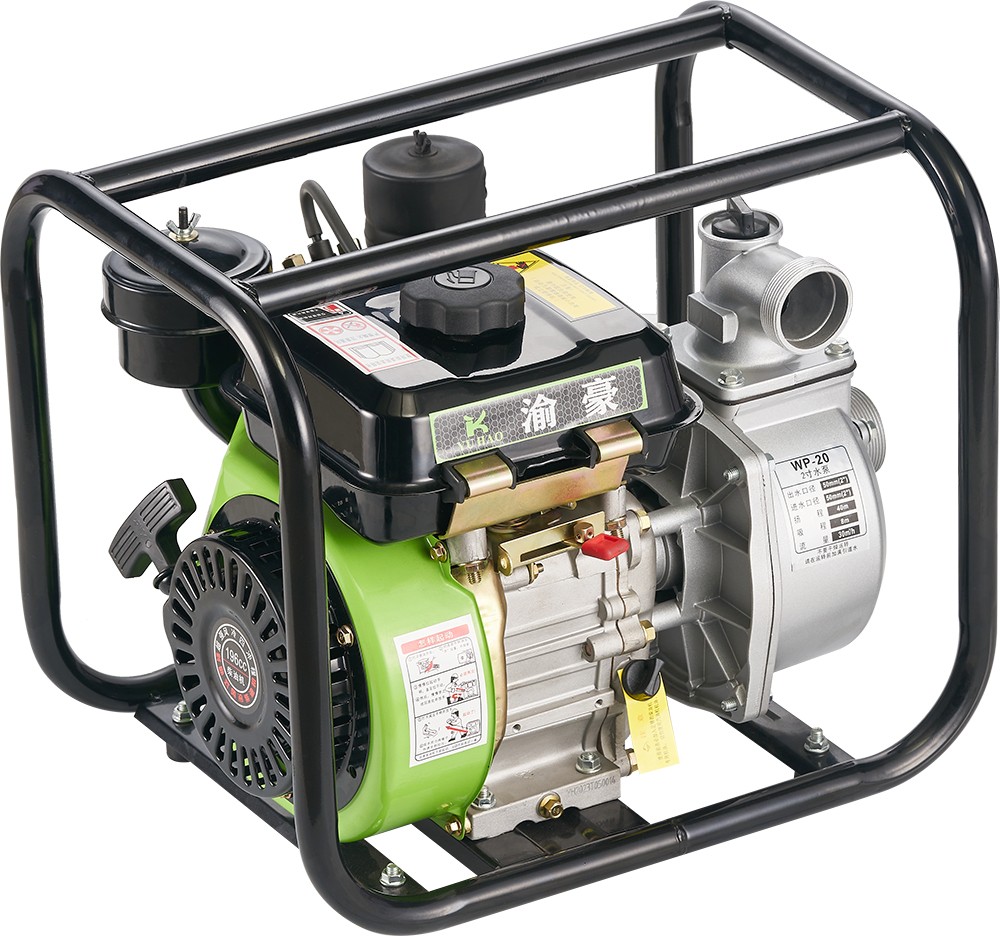

Diesel pumps

Characteristic

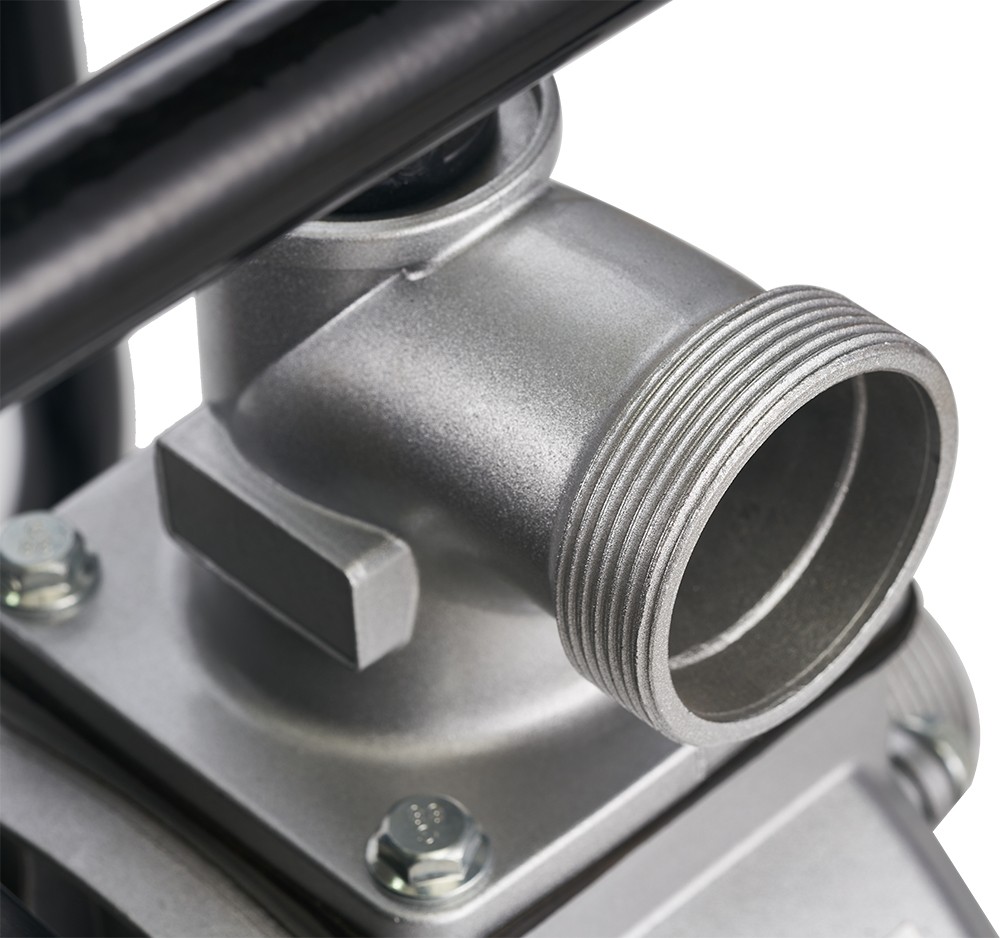

Horizontal cold air, overhead valve (OHV) design, strong power, reliability and durability, the pump body is made of ADC12 aluminum alloy casting, professional balance and low gravity design, so that the smooth operation of the engine low fuel consumption, low noise, energy saving and environmental protection, Environmental protection.

The six core escort for you

Strong power

All Steel Crankshaft

Forged piston

Low fuel consumption

Factory inspection

Quality assurance

Detailed parameters

Model

YH168F-20CX/electric start/manual

YH168F-30CX/electric start/manual

YH168F-40CX/electric start/manual

Engine category

Four stroke,overhead valve,horizontal shaft air-cooled, Single cylinder gasoline engine

Inlet/Outlet diameter

50mm(2inch)

80mm(3inch)

100mm(4inch)

Maximum lift

25m

30m

25m

Specified seif suction height

7m

7m

7m

Maximum Flow

30m³/h

60m³/h

65m³/h

Engine

Diesel YH168F

Diesel YH168F

Diesel YH168F

Gross weight

36kg

38kg

39kg

Overall dimension

52.5x39x43.5cm

52.5x39x43.5cm

59x46.5x50.5cm
