| Characteristic | ||||
| The rod is tensile and wear resistant and has good toughness; The pump shell and four large parts are all processed by cnc (precision work center); The exterior design conforms to the principles of mechanics, the structure is stable, and the unique streamlined curves are aesthetically pleasing. Main components are carefully manufactured and quality guaranteed; The heavy construction allows the piston pump to have high performance. | ||||
| The five core escort for you | ||||
| Performance is stable | ||||
|
The pressure can be adjusted |
||||
| Multiple uses of a single machine | ||||
|
Long lasting. |
||||
| Extra longevity | ||||
| Detailed parameters | ||||

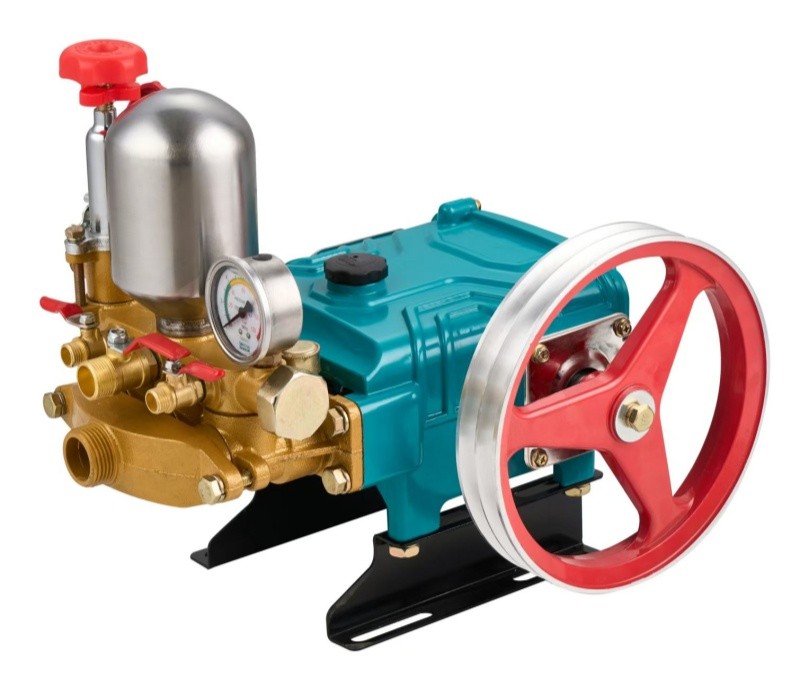

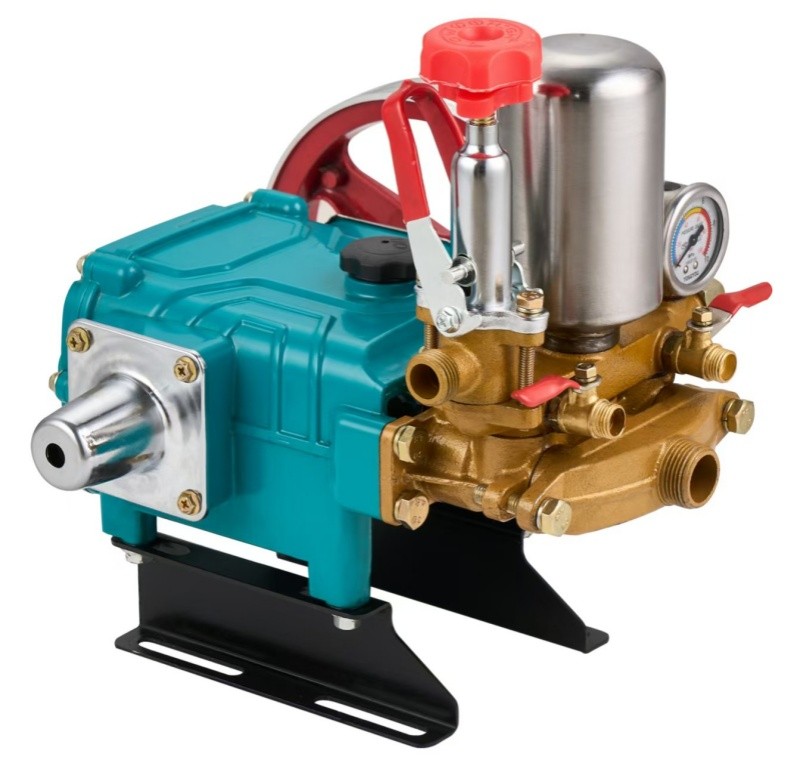

| Model | YH-60J | YH-60JA | YH-60T | YH-60W |
| Plunger Dia x stroke | 27x20mm | 27x20mm | 27x20mm | 27x20mm |
| Suction Volume | 30-40L/min | 30-40L/min | 30-40L/min | 30-40L/min |
| Working Pressure | 0-40kg/cm2 | 0-40kg/cm2 | 0-40kg/cm2 | 0-40kg/cm2 |
| Revolution | 800-1000r.p.m | 800-1000r.p.m | 800-1000r.p.m | 800-1000r.p.m |
| Required power | 2.2-3.8KW | 2.2-3.8KW | 2.2-3.8KW | 2.2-3.8KW |
| weight | 10.5kg | 11kg | 10.5kg | 10.5kg |
| Packing Dimension | 375x305x335mm | 375x305x335mm | 375x305x335mm | 375x305x335mm |
