Home      Products     Gasoline Pump Series       Gasoline engine waste pumpYH-170F-WB80
  •  Gasoline engine waste pumpYH-170F-WB80

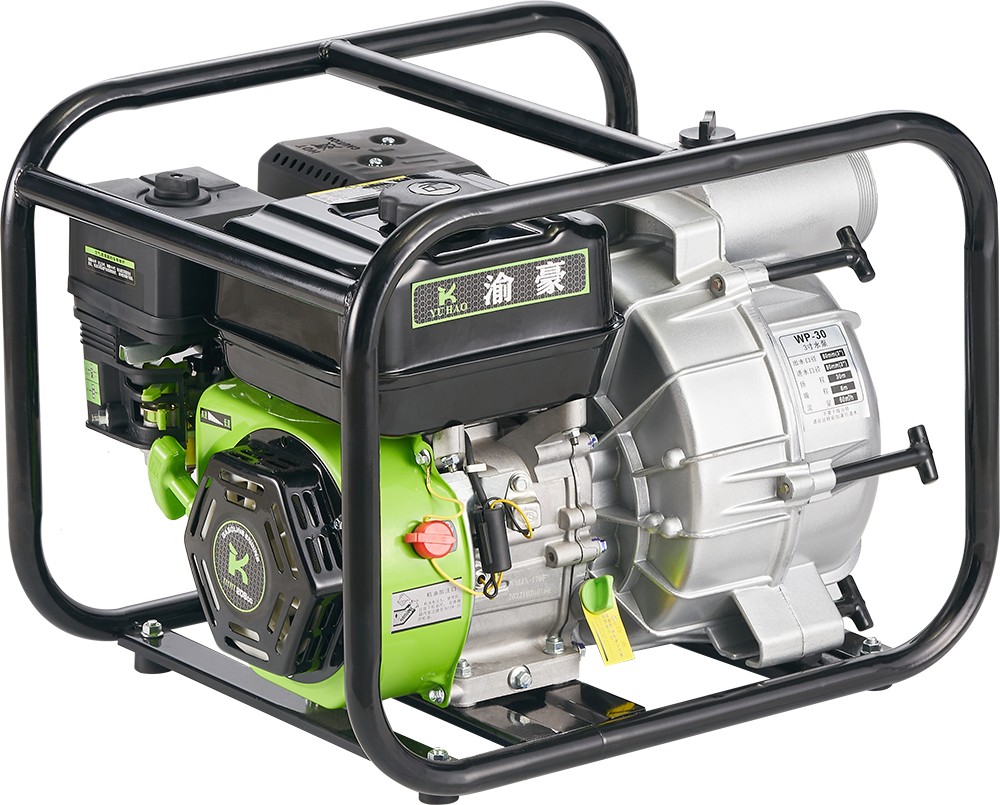

Gasoline engine waste pumpYH-170F-WB80

  • Product Item : Gasoline engine waste pumpYH-170F-WB80
  • Category: Gasoline Pump Series
  • Product description:Vibration enhancement: professionally balanced low centre of gravity design for smooth engine operation Reliability enhancements: cast iron cylinder casing, Hard alloy exhaust valves, double rolling b
  • INQUIRY   EMAIL

Characteristic

Horizontal cold air, overhead valve (OHV) design, strong power, reliability and durability, the pump body is made of ADC12 aluminum alloy casting, professional balance and low gravity design, so that the smooth operation of the engine low fuel consumption, low noise, energy saving and environmental protection, Environmental protection.

The six core escort for you

Strong power

All Steel Crankshaft

Forged piston

Low fuel consumption

Factory inspection

Quality assurance

Detailed parameters

Model

YH-170F-HP20/Key to start

YH-170F-WB80/Key to start

Engine category

Four stroke,overhead valve,horizontal shaft air-cooled, Single cylinder gasoline engine

Inlet/Outlet diameter

50mm(2inch)

80mm(3inch)

Maximum lift

65m

65m

Specified seif suction height

7m

7m

Maximum Flow

30m³/h

30m³/h

Engine

170FA/C

170FA/C

Gross weight

26kg

33kg

Overall dimension

52.5x39x43.5cm

56x45x44cm
