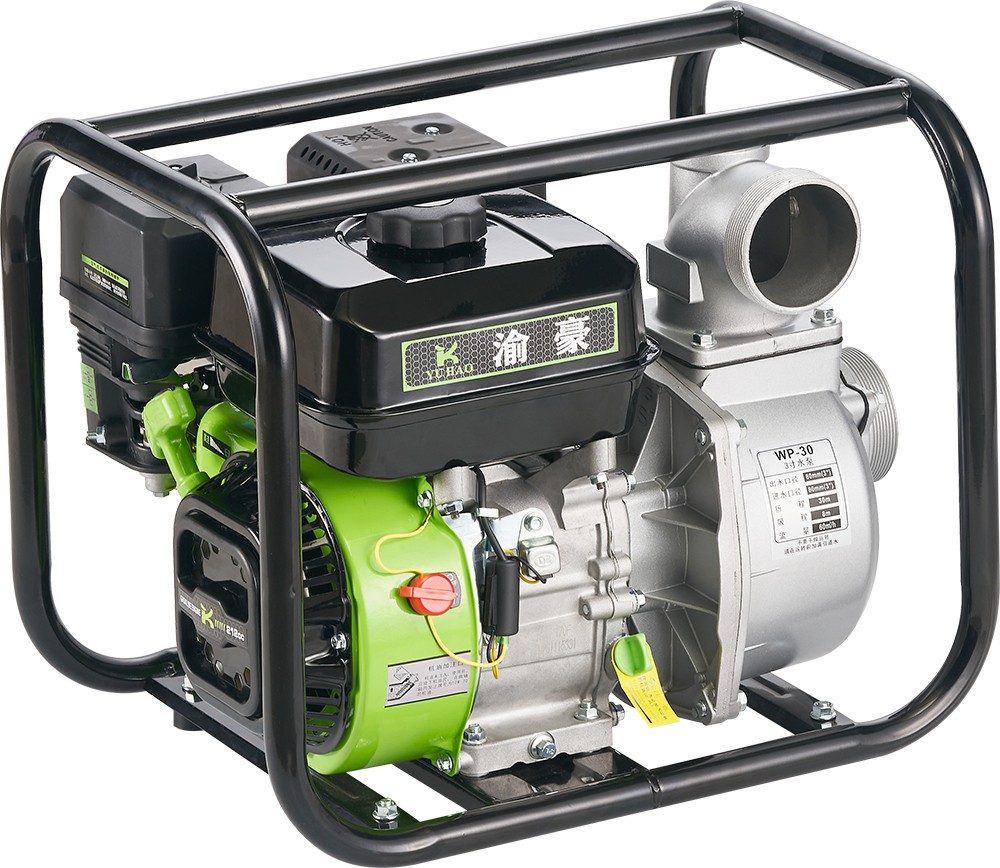

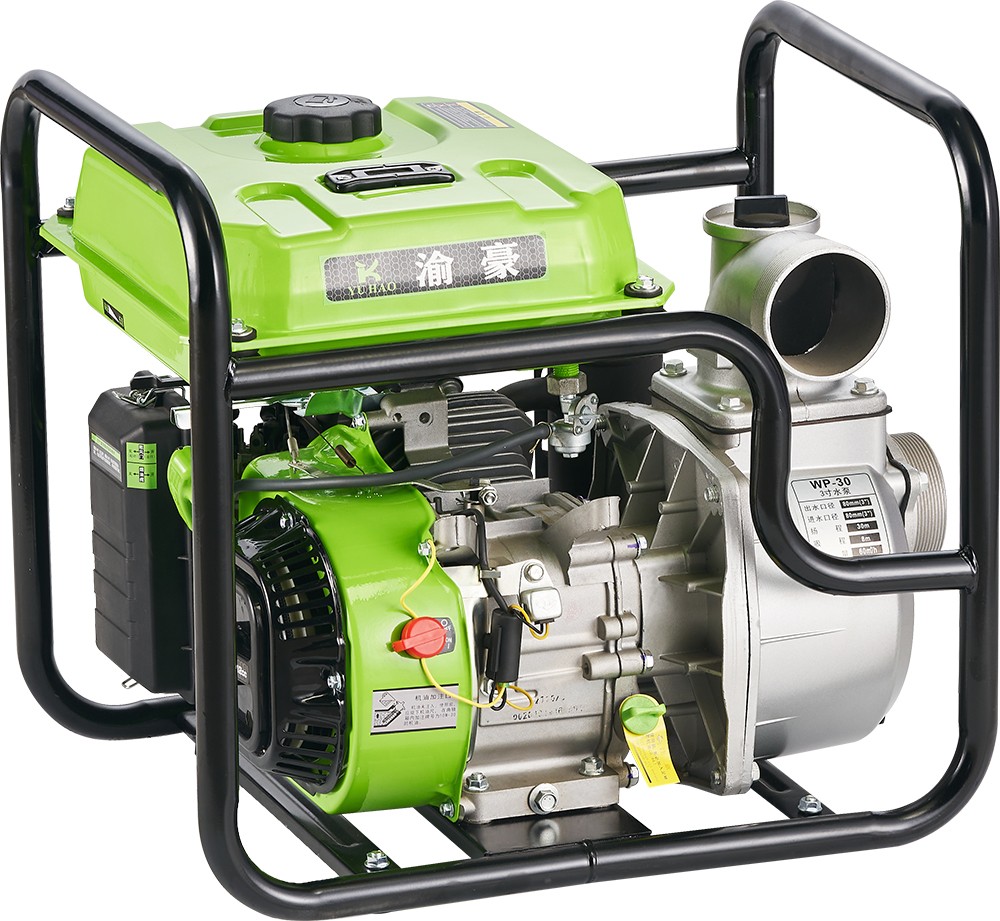

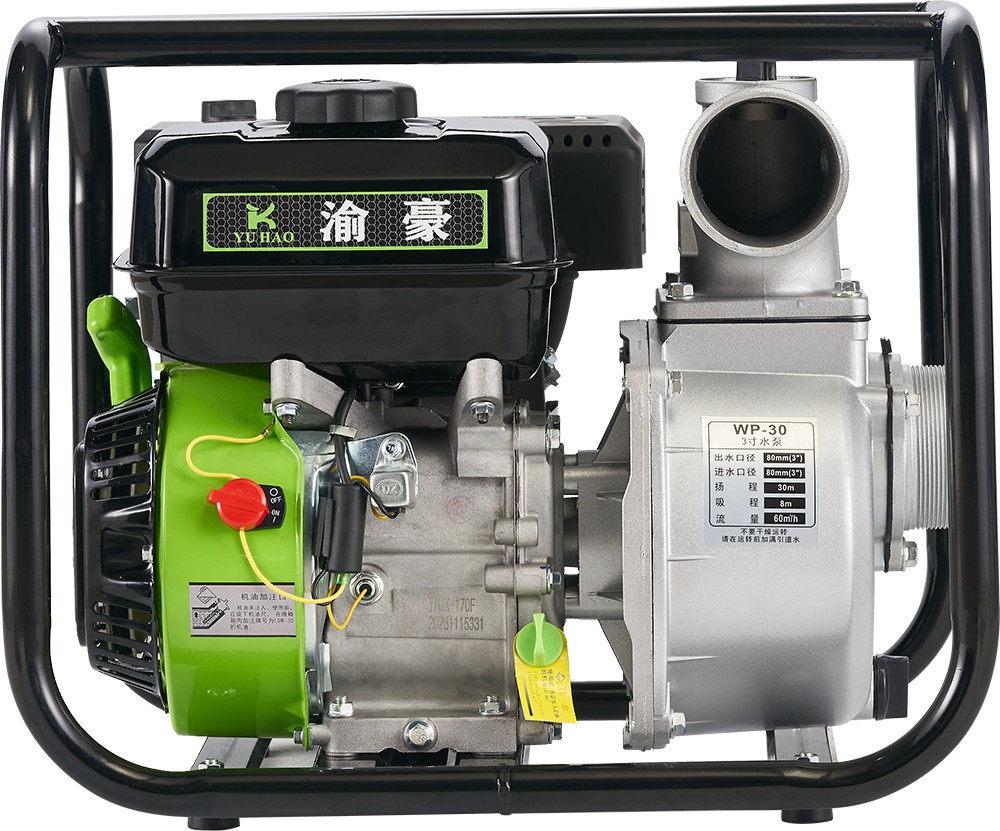

Gasoline engine water pump170

Product Item : Gasoline engine water pump170
Category： Gasoline Pump Series
Product description：170F four-stroke imported gasoline engine 2 inch 3 inch high-power water pump farmland irrigation fire self-priming pump
INQUIRY EMAIL

Characteristic
Horizontal cold air, overhead valve (OHV) design, strong power, reliability and durability, the pump body is made of ADC12 aluminum alloy casting, professional balance and low gravity design, so that the smooth operation of the engine low fuel consumption, low noise, energy saving and environmental protection, Environmental protection.



The six core escort for you
Strong power
All Steel Crankshaft
Forged piston
Low fuel consumption
Factory inspection
Quality assurance
Detailed parameters
Model	YH170F-20CX/YH-1	YH170F-30CX/YH-1	YH170F-40CX/YH-1
Engine category	Four stroke,overhead valve,horizontal shaft air-cooled, Single cylinder gasoline engine
Inlet/Outlet diameter	50mm(2inch)	80mm(3inch)	100mm(3inch)
Maximum lift	25m	30m	25m
Specified seif suction height	7m	7m	7m
Maximum Flow	30m³/h	60m³/h	650m³/h
Engine	170F	170F	170F
Gross weight	24kg	26kg	33kg
Overall dimension	52.5x39x43.5cm	52.5x39x43.5cm	59x46.5x50.5cm
